HYMAX GRIP® SWIVELJOINT (LALO)

For any situation in the field, we’ve got your angle!

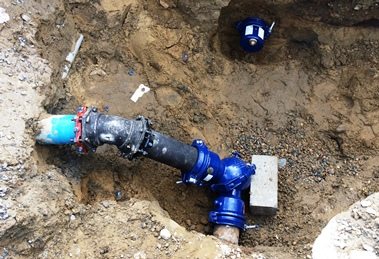

HYMAX GRIP® SWIVELJOINTTM  (sizes 4″-12″) can connect and restrain two pipes AT ANY ANGLE FROM 0° TO 90°, providing an efficient solution for field situations where an irregular angle between pipes exist. A replacement pipe and one coupling complement the Swiveljoint installation.

Based on the market-leading HYMAX GRIP restraint by Hymax, this one-of-a-kind wide-range product includes all of its advantages: ready to use, stab-fit design; unique radial gripping system that prevents pipe motion; universal gripping teeth that fit most metal and plastic pipes; up to 4° dynamic deflection per end that reduces future pipe damage; a patented hydraulically-assisted gasket with 2-stage sealing and more.





See Product Video

See Case Study

pdf Hymax Grip Swiveljoint (LALO) Installation Instructions
pdf Hymax Grip Swiveljoint (LALO) Specification Sheet
HYMAX GRIP Swiveljoint (LALO) Installation video
pdf Pipe Repair Brochure

Nominal Pipe Size
4” – 12”
Working Pressure
232 PSI
Torque
55 – 165 FT-LBS
Top Facing Bolts
3
