HYMAX® LARGE DIAMETER COUPLING SOLUTIONS (HLD)

Game-changing HYMAX® HLD 14″-60″ coupling solutions offer innovative engineering and design, enabling fast stab-on installation, improving workers’ safety, and reducing under-digging and losing bolts in the mud.

Featuring:

  • Only 4 bolts!
  • Extra wide range of 2.1″
  • Up to 4° dynamic deflection on each end, reducing future pipe damage
  • Patented hydraulically-assisted gasket with 2-stage sealing
  • Suitable for most types of pipes – ductile iron, cast iron, steel, PE, PVC, AC.
  • Maximum working temperature of 125°F.

These unique advantages, along with its outstanding flexibility and extreme durability, make the HYMAX® HLD the cost-effective, high-performance choice for a wide range of field applications. HYMAX game-changing wide-range couplings have been proven in millions of installations in North America.

NEW from Hymax USA:

  • HYMAX products sizes 14″ to 24″ in all configurations are now available with NBR gaskets in addition to EPDM.
  • HYMAX MTO products (Made to Order) can now be ordered with NBR gaskets in sizes 26″ to 60″

For HYMAX product installation instructions and individual specification sheets, please follow the product pages.

NOTE: HYMAX products large diameter products sizes 14″-60″ are still using the 2-layer detachable gasket.



See Installation Video
See Product Video
pdf HYMAX LARGE DIAMETER (HLD2)
pdf HYMAX coupling & Long Body
pdf CENTERING PINS REPLACEMENT
pdf HYMAX coupling 14"-60"
pdf HYMAX Long Body
pdf HYMAX Flange Adaptor & Flange Adaptor Long Body

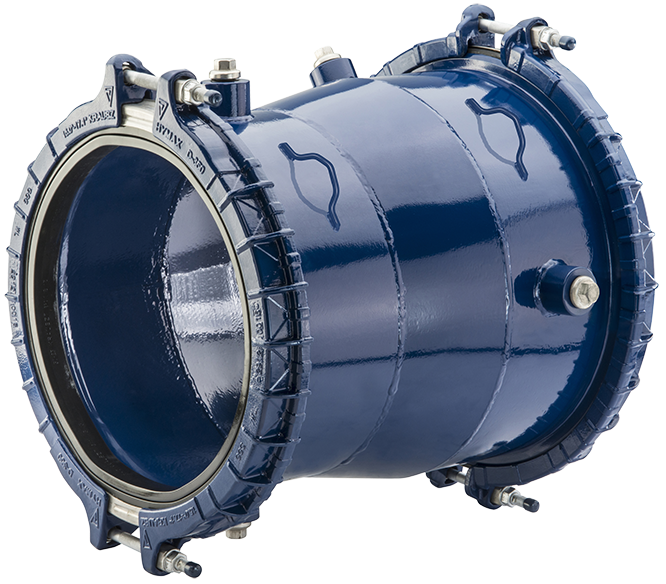

pdf HYMAX Reducer
